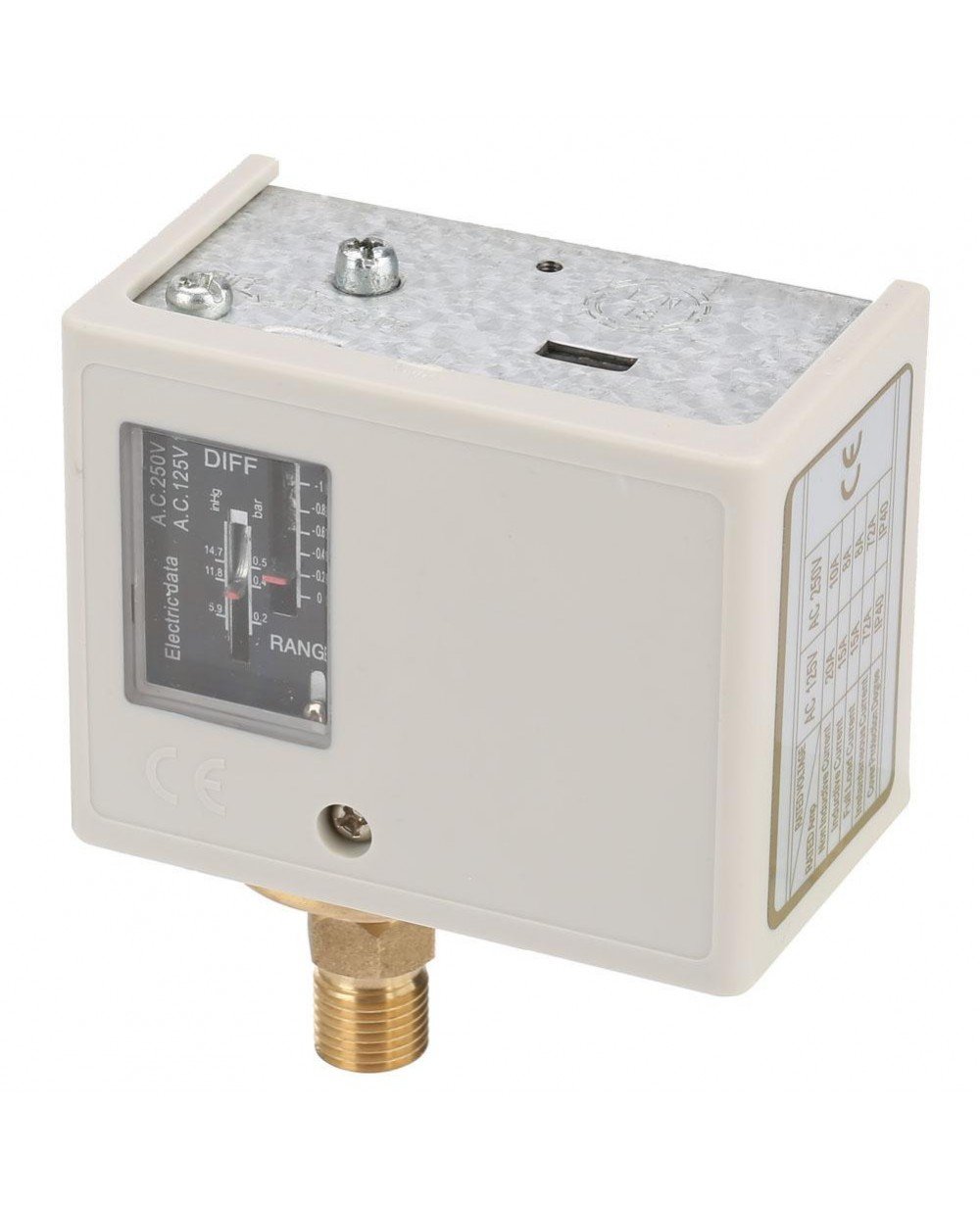

Pressure Control Switch

Specification:
- Material: Stainless steel, iron plated nickel, plastic
- Weight: 408g/14.4oz
- Thread: G thread
- Pressure regulating range (bar): 1 (Min) ~ 10 (Max)
- Differential pressure adjustment range (bar): 1(Min) ~ 3 (Max)
- Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)
- Maximum air tightness test (bar): 16.5
- Power supply voltage: 24V~380V
- Micro switch life: 100,000 times

Electrical parameters:
- When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.
- When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.

Remarks:
